Make tabulated cylinder surface

To create tabulated cylinder surface click the icon from toolbar

Or
Give the geo>make tabulated cylinder
command from the menu

To explain this tutorial we created a surface on the document.
You can create a surface by geo module or you can open a file which should be dxf, iges and vpj file.

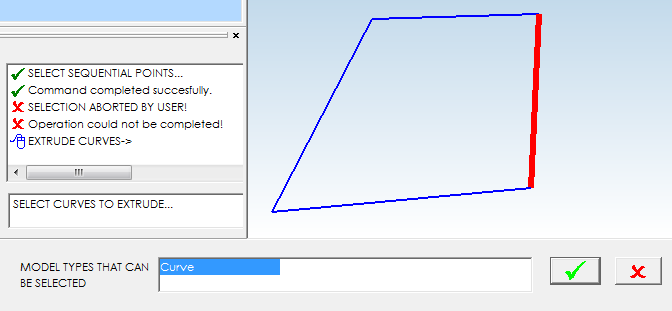

SolidCNC wait you to select surface for creating tabulatedcylinder surface.

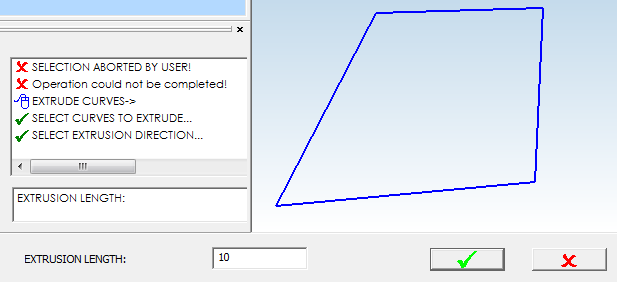

SolidCNC wait you to select direction to define extrusion direction.

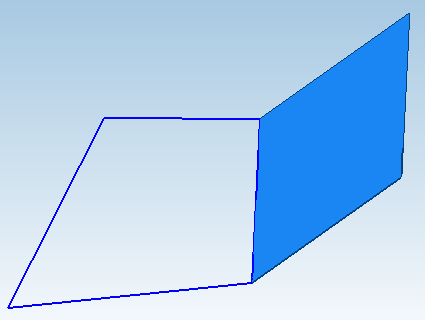

when you confirm the selection tabulated cylinder surface will be created.
