Make spline

We need at least 6 points to create spline.

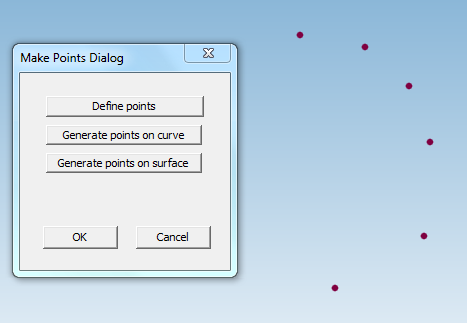

So lets create 6 points to the current document

To create a new splie click this icon from toolbar

Org give geo>make splines
command

You will see point selection as a selectable model type on selection bar.

SolidCNC wait us to select points for creating splines.

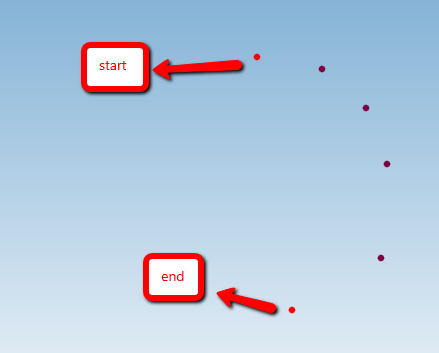

After selection the six points we should select the spline start and end point.

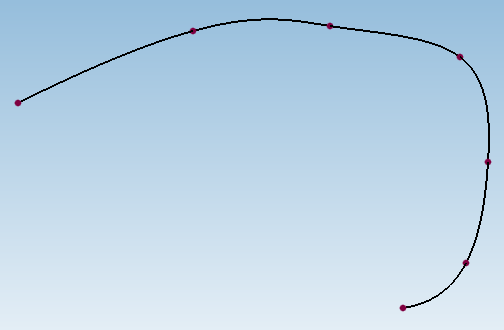

Spline created
