Hiding and showing objects on the graphic screen

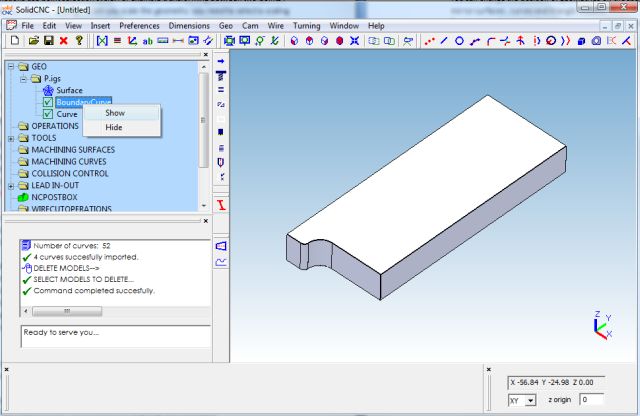

You can hide objects either from treeview or by giving hide command. First we will try to hide and show objects from the treeview node. When you right click on items on the treeview , a context menu will appear by which you can hide or show the models. We will hide the boundary curves of P.igs from treeview as shown in

You can also pick items from graphic window for hiding by toolbar command

Or give menu command View->Hide...
Then model selection cycle will begin , you need to select objects to hide and press OK.

If you want to unhide some hidden object press toolbar button

Or give menu command View->Show Hidden...
After that all hidden objects will appear on graphic window, you should select the ones to unhide and press OK.
