Make fillet

To create fillet click the icon from the toolbar

Or
You can give the Geo>Radyus
command from menu bar

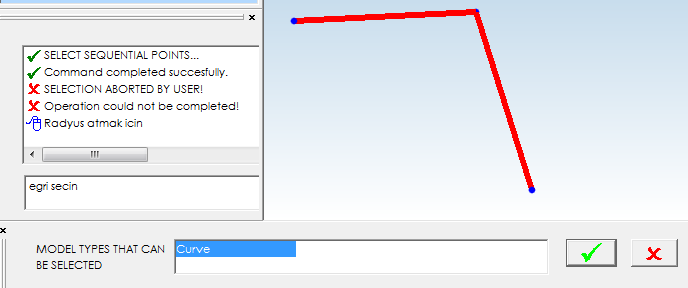

SolidCNC wait you to select spline for creating fillet.

We need to give almost fillet center value.

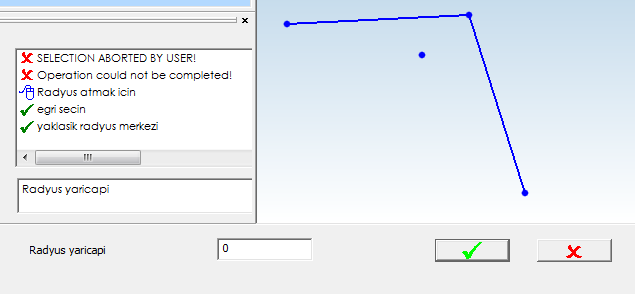

So we define a fillet center point to select free point click from selection bar

After that we can complete the fillet drawing while defining a radius value.
