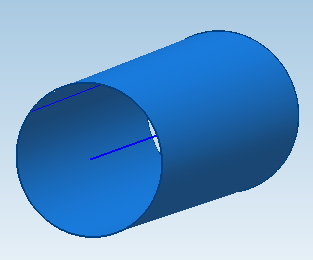

Make surface of revolution

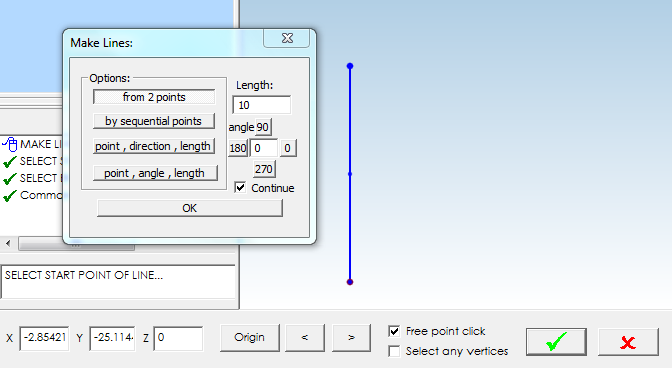

To explain this tutorial we created a curve on the current document.

to make surface of revolution click the icon

or
give the geo>make surface of revolution
command from the menu

SolidCNC wait you to select curves when you click the OK buton.

Next step SolidCNC wait you to define axis start point

at the end when axis direction defines and process complete.
In this example axis direction defined as y direction
