Managing Views

When you import file P.igs which you may find under .../CAMDisk/Samples/P.igs the geometry on the graphics window.

You can change the view to top view , right view , front view etc by using the following toolbar

• Pans the view
• Zooms the view into a drawn box
• Enables dynamic zooming with your mouse move
• Rotates the view
• Changes the view to front
• Changes the view to top
• Changes the view to right
• Changes the view to isometric
• Fits the view
• Hides the selected objects
• Shows the hidden objects
• Shows the list of the views

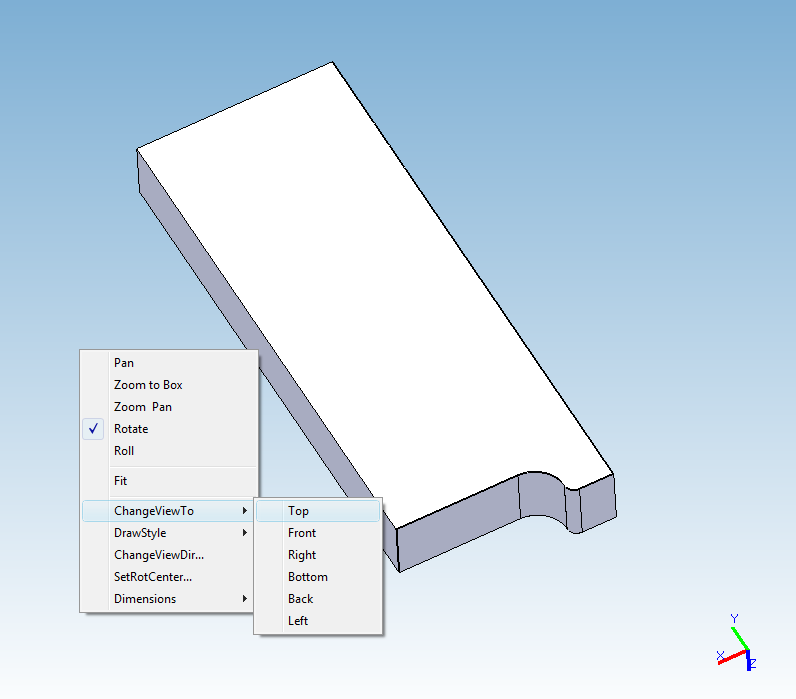

Or you can use the context menu which will appear when you right click on Graphics Window
